Features

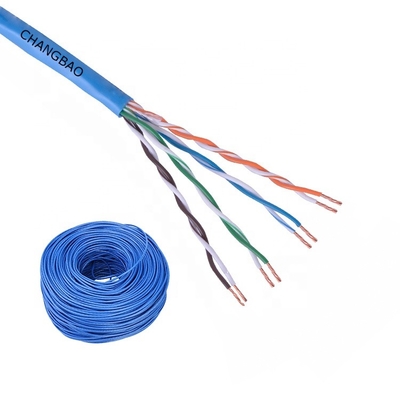

Conductor | Material | Stranded Bare Copper |
Size | 24AWG X 4P | |
Construction | 7/0.20mm | |
Insulation | Material | HDPE |
Diameter | 0.98±0.01mm | |
Colors | Blue-White/Blue | |
Orange-White/Orange | ||
Green-White/Green | ||
Brown-White/Brown | ||
Jacket | Material | PVC |
AVG. Thickness | 0.60mm | |
Min. Thickness | 0.54mm | |
Diameter | 5.40±0.10mm | |
Rip Cord | Nylon | |
Colors | Per request |
Frequency | Return loss | Attenuation | NEXT | PSNEXT | ELFEXT | PSELFEXT |
(MHz) | (Min dB) | Max (dB/100m) | (Min dB) | Min (dB) | Min (dB/100m) | Min (dB/100m) |
1 | 20.0 | 2.0 | 68.3 | 66.3 | 63.8 | 60.8 |
4 | 23.0 | 4.1 | 59.3 | 57.3 | 51.7 | 48.7 |
8 | 24.5 | 5.8 | 54.8 | 52.8 | 45.7 | 42.7 |
10 | 25.0 | 6.5 | 53.3 | 51.3 | 43.8 | 40.8 |
16 | 25.0 | 8.2 | 50.3 | 48.3 | 39.7 | 36.7 |
20 | 25.0 | 9.3 | 48.8 | 46.8 | 37.8 | 34.8 |
25 | 24.3 | 10.4 | 47.3 | 45.3 | 35.8 | 32.8 |
31.25 | 23.6 | 11.7 | 45.9 | 43.9 | 33.9 | 30.9 |
62.5 | 21.5 | 17.0 | 41.4 | 39.4 | 27.8 | 24.8 |
100 | 20.1 | 22.0 | 38.3 | 36.3 | 24.0 | 21.0 |
155 | 18.8 | 28.1 | 35.5 | 33.5 | 20.0 | 17.0 |
200 | 18.0 | 32.4 | 33.8 | 31.8 | 17.7 | 14.7 |
240 | 17.4 | 36.0 | 32.6 | 30.6 | 16.2 | 13.2 |
300 | 16.8 | 41.0 | 31.2 | 29.2 | 14.2 | 11.2 |
350 | 16.3 | 44.9 | 30.1 | 28.1 | 12.9 | 9.9 |
